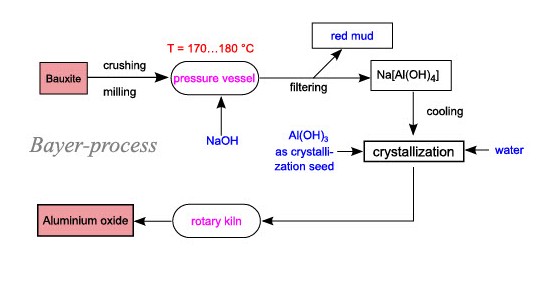

The Bayer Process

The Bayer Process

Description: A mixture of Aluminum, Silicon and Iron ions in solution may be separated using the amphoteric properties of aluminum to selectively precipitate one species in a mixture. The demo is based on historical industrial processes.

2 NaAlO2(aq) + 3H2O(l) + CO2(g) → 2Al(OH)3 (aq) + Na2CO3(aq)

2Al(NO3)3 (aq) + 2CO2(g) + 6H2O(aq) →2Al(OH)3 + 2H2CO3(aq)+ 6NO3–(aq) + H2O(l)

Al2O3 3H2O(s) + 2Ca(OH)2(aq) + Heat → Al2O3(s) + 2CaO(s) + 4H2O(g)

Al(s) + 2OH–(aq) +6 H2O(l) → Al(OH)4–(aq) + 3H2(g)

Solubility section:

Al(OH)3(s) + 3H+(aq) → Al(H2O)6 +3(aq) + 3H2O(l)

Al(OH)3(s) + OH–(aq) → Al(OH)4– (aq)

Na2SiO3(aq) + 2CO2(g) + H2O(l) → Si(CO3)2(s) + 2Na+(aq) 2OH−(aq)

Sources: Shakhashiri, B.Z., Chemical Demonstrations: A Handbook for Teachers of Chemistry

Year: 1989   Vol:  3   Page: 128 – 130

Judith Burstyn (2011) Personal Consult

http://processflowsheets.blogspot.com/2012/05/aluminum-production-process-bayer-hall.html

Keywords:  Bayer, Acid, Precipitation, Aluminum, Iron, Separation, Silicate

Rating:

Hazard: Medium

  • Gas under pressure
  • Asphyxiation hazard
  • Serious eye damage
  • Skin corrosion hazard
  • Skin irritation hazard
  • Corrosive to metals
  • Specific target organ toxicity – single exposure – respiratory hazard
  • Acute aquatic toxicity hazard
  • Skin burn hazard
  • Inhalation hazard
  • Frostbite hazard
  • Acute toxicity hazard

Effectiveness: Average

  • Mild effects are observed
  • Time to results is medium
  • Results are observable with guidance
  • Good connection from demo to course material
  • Contrast between systems behavior is noticeable
  • Moderate to  high failure rate

Difficulty:  Medium

  • Use of corrosive reagents
  • Demos at non-standard conditions
  • Multi-step procedures with varying results
  • Some fine manipulations
  • Demos that require some training to perform safely or correctly

Safety Precautions:

  • Gloves required
  • Eye protection required
  • Perform in a well-ventilated area
  • Sodium bicarbonate for spills of strong acid or base
  • Absorbent material on hand
  • Use UL approved three-prong plug and outlet
  • Prevent release of reagents to the environment





Class: IA, IIA, and IIIB (1, 2, and 13)

Division: Inorganic Chemistry
